Thailand 4x4 pickup SUV exporter importer of RHD LHD New 2017 and Used Toyota Revo, Toyota Vigo, Toyota Fortuner, L200 Triton, and Nissan Navara

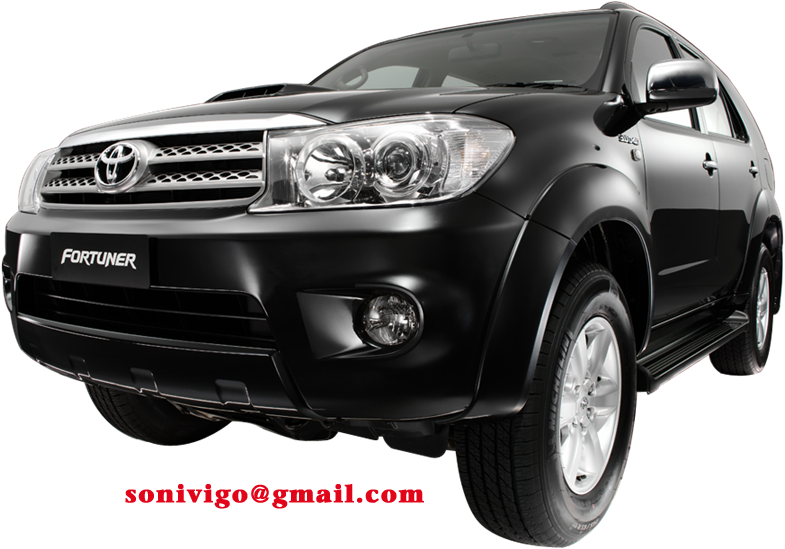

Toyota Fortuner 2009
versatile Toyota Hilux Vigo-based SUV has been released. Here are some pics of this great looking minor change 2009 Toyota Fortuner. More details can be found
at Toyota Fortuner 2009 page. Fortuner

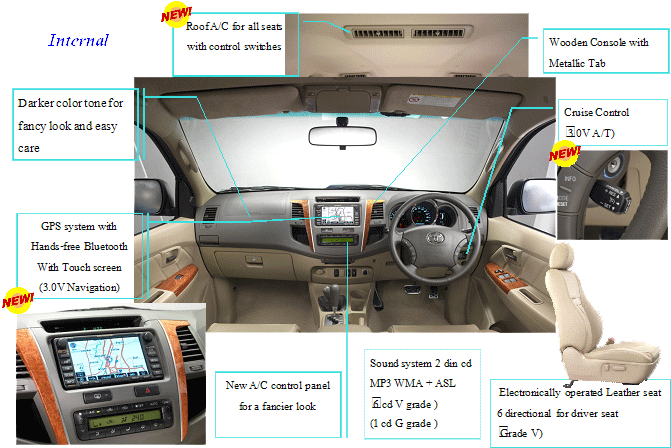

2009 not only has a new front grill, front lamp, new taillights, cruise
control, roof air-condition for all seats but also better heavy-duty braking
system
We became Thailand's first auto exporter to ship 2009 Toyota Fortuner in one day of its official release. This is no surprise since we shipped Toyota Hilux Vigo when it was first released in 2004 in two days of its release and repeated the same feat upon debut of Toyota Fortuner. We plan to ship 2009 Toyota Hilux Vigo, 2009 Mitsubishi L200 Triton, 2009 Mitsubishi Pajero Sport, 2009 Nissan Navara, 2009 Isuzu Dmax, 2009 Isuzu MU-7, 2009 Ford Ranger, 2009 Chevy Colorado and all 2009 4x4 pickups, SUVs and cars in the first week of their delivery. Sam Motors Thailand is Thailand's best auto exporter and largest 4x4 dealer of both new vehicles and used vehicles. So whether you are looking for brand new 2009 Toyota Fortuner or quality second-hand Toyota Fortuner, Sam Motors is the in place for all 4x4 lovers in 100 countries of the world.
Toyota Fortuner 2009 is available in following five colours: Silver Metallic, Black Mica, Beige Mica Metallic (Gold), Dark Grey Mica Metallic and Blue Metallic.
Toyota Fortuner 2009 comes in following five models:
Here is the comparison of features in different models:
Please note the following difference between feature set of different models:
| Toyota Fortuner Models | 3.0 V A/T Navi | 3.0 V A/T | 3.0 V 2WD | 2.7 V 2WD | 3.0 G M/T |
|---|---|---|---|---|---|
| Transmission: | 4 A/T | 4 A/T | 4 A/T | 4 A/T | 5 M/T |
| Price: | 1,419,000 baht | 1,309,000 baht | 1,249,000 baht | 1,149,000 baht | 1,059,000 baht |
| Dimension | |||||
| Exterior Dimension - length x width x height (mm.) | 4,695 x 1,840 x 1,795 | 4,695x1,840x1,795 | 4,695x1,840x1,795 | 4,695x1,840x1,795 | 4,695x1,840x1,795 |
| Interior Dimension - Length x width x Height (mn.) | 2,880 x 1,475 x 1,210 | 2,880 x 1,475 x 1,210 | 2,880 x 1,475 x 1,210 | 2,880 x 1,475 x 1,210 | 2,880 x 1,475 x 1,210 |
| Wheelbase (mm.) | 2,750 | 2,750 | 2,750 | 2,750 | 2,750 |
| Thread Front/Rear (mm.) | 1,540/1,540 | 1,540/1,540 | 1,540/1,540 | 1,540/1,540 | 1,540/1,540 |
| Ground clearance (mm.) | 220 | 220 | 220 | 220 | 220 |
| Curb Weight (kg.) | 1,960 | 1,960 | 1,840 | 1,755 | 1,920 |
| Fuel tank capacity (L.) | 65 | 65 | 65 | 65 | 65 |
| Min turning radious (m.) | 5.7 | 5.7 | 5.7 | 5.7 | 5.7 |
| Engine | |||||
| Model | 1KD-FTV | 1KD-FTV | 1KD-FTV | 2TR-FE | 1KD-FTV |
| Type | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VVT-i | 4 cyl 16 valve DOHC VN turbo Intercooler |
| Displacement (cc.) | 2,982 | 2,982 | 2,982 | 2,694 | 2,982 |
| Bore x Stroke (mm.) | 96.0 x 103.0 | 96.0 x 103.0 | 96.0 x 103.0 | 95.0 x 95.0 | 96.0 x 103.0 |
| Compression ratio | 17.9:1 | 17.9:1 | 17.9:1 | 9.6:1 | 17.9:1 |
| Fuel system | Common-rail | Common-rail | Common-rail | EFi | Common-rail |
| Max output (ps / rpm) | 163/3,400 | 163/3,400 | 163/3,400 | 160/5,200 | 163/3,400 |
| Max output (kw/ rpm) | 120/3,400 | 120/3,400 | 120/3,400 | 118/5,200 | 120/3,400 |
| Max torque (n-m/rpm) | 343/1,400-3,200 | 343/1,400-3,200 | 343/1,400-3,200 | 241/3,800 | 343/1,400-3,200 |
| Max torque (kg-m/rpm) | 35/1,400-3,200 | 35/1,400-3,200 | 35/1,400-3,200 | 24.59/3,800 | 35/1,400-3,200 |
| Chassis | |||||
| Front suspension | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer |
| Rear suspension | Four link coil spring | Four link coil spring | Four link coil spring | Four link coil spring | Four link coil spring |
| Front brake | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
| Rear brake | Drum LTS with SUPER LSPV | Drum LTS with SUPER LSPV | Drum LTS with SUPER LSPV | Drum LTS with SUPER LSPV | Drum LTS with SUPER LSPV |
| Wheel | 7.5Jx17" Alloy | 7.5Jx17" Alloy | 7.5Jx17" Alloy | 7.5Jx17" Alloy | 7.7.5Jx17" Alloy |
| Tyre size | 265/65 R17td> | 265/65 R17 | 265/65 R17 | 265/65 R17 | 265/65 R17 |
| Drive Train | 4wd Full time | 4wd Full time | Rear Wheel Drive | Rear Wheel Drive | 4wd Full time |
| Steering system | Rack & Pinion with Power | Rack & Pinion with Power | Rack & Pinion with Power | Rack & Pinion with Power | Rack & Pinion with Power |
| Steering type | Front wheel | Front wheel | Front wheel | Front wheel | Front wheel |
&n
| Toyota Fortuner Models | 3.0 V A/T Navi | 3.0 V A/T | 3.0 V 2WD | 2.7 V 2WD | 3.0 G M/T |
|---|---|---|---|---|---|
| Transmission: | 4 A/T | 4 A/T | 4 A/T | 4 A/T | 5 M/T |
| Price: | 1,419,000 baht | 1,309,000 baht | 1,249,000 baht | 1,149,000 baht | 1,059,000 baht |
| Exterior Features | |||||
| Front Grill | Chromium | Chromium | Chromium | Chromium | Chromium |
| Head light | Projector Lens | Projector Lens | Projector Lens | Projector Lens | Projector Lens |
| Front Sport light | |||||
| Side step | |||||
| Side door handle | Chromium Grip Type | Chromium Grip Type | Chromium Grip Type | Chromium Grip type | Chromium Grip type |
| Side mirror | Chromium | Chromium | Chromium | Chromium | Chromium |
| Rear light | Bulb | Bulb | Bulb | Bulb | Bulb |
| Hi mouth sbest lamp | |||||
| Rear spoiler | - | ||||
| Antenna | Printed on Quarter mirror | Printed on Quarter mirror | Printed on Quarter mirror | Printed on Quarter mirror | Printed on Quarter mirror |
| Interior Features | |||||
| Color | Ivory | Ivory | Ivory | Ivory | Ivory |
| Decoration | Leather with Metallic | Leather with Metallic | Leather with Metallic | Leather with Metallic | Fabric |
| Combination meter | Optitron | Optitron | Optitron | Optitron | Optitron |
| Seat's material | Leather | Leather | Leather | Leather | Fabric |
| Steering wheel's material | Leather | Leather | Leather | Leather | Urethane |
| Shift knob's material | Leather | Leather | Leather | Leather | Urethane |
| Sun visor | with Mirror | with Mirror | with Mirror | with Mirror | with Mirror |
| Center console box | |||||
| Front seat | Sport type | Sport type | Sport type | Sport type | Normal |
| Passenger seat Row 1 | 60:40 Recline, Slide, Split Fold | 60:40 Recline, Slide, Split Fold | 60:40 Recline, Slide, Split Fold | 60:40 Recline, Slide, Split Fold | 60:40 Recline, Slide, Split Fold |
| Passenger seat Row 2 | 50:50 Recline & Hanging | 50:50 Recline & Hanging | 50:50 Recline & Hanging | 50:50 Recline & Hanging | 50:50 Recline & Hanging |
| Front seat arm rest | |||||
| Rear seat arm rest | |||||
| Safety Features | |||||
| GOA body | |||||
| Side bar protection | |||||
| ABS | |||||
| Safety belt | 3 points ELR for 6 seats | 3 points ELR for 6 seats | 3 points ELR for 6 seats | 3 points ELR for 6 seats | 3 points ELR for 6 seats |
| SRS Airbag | Dual front | Dual front | Dual front | Dual front | Driver only |
| Back sensor | - | ||||
| Power Features | |||||
| Multi information display | - | ||||
| Air conditioner | Automatic | Automatic | Automatic | Automatic | Automatic |
| Audio | 1 DVD 6CD MP3 WMA with Touch Screen | 6CD MP3 WMA | 6CD MP3 WMA | 6CD MP3 WMA | 1CD MP3 WMA |
| Speaker | 6 | 6 | 6 | 6 | 6 |
| Power door lock | Power | Power | Power | Power | Power |
| Power windows | Power (with Jam Driver Only) | Power (with Jam Driver Only) | Power (with Jam Driver Only) | Power (with Jam Driver Only) | Power (with Jam Driver Only) |
| Wireless key | |||||
| Steering column adjusting | Tilt | Tilt | Tilt | Tilt | Tilt |
| Multifunction steering | Audio and MID | Audio and MID | Audio and MID | Audio and MID | - |
| Viper control system | Manual with Timer | Manual with Timer | Manual with Timer | Manual with Timer | Manual with Timer |
| Security Features | |||||
| Immobilizer system | |||||
| Thief Deterrent System | TDS | TDS | TDS | TDS | TDS |
New Fortuner …The Ultimate Luxury SUV with Luxury Style, Superior Comfort and Utility, Advance new Features and innovative safety for the highest level of driving confidence.
Toyota Fortuner has the following advantages over other SUVs in the market:
Fortuner 2009 now comes in 5 models:
Contents
Navigator
Toyota Fortuner Specifications
Sam Motors' best four sellers are Toyota Hilux Vigo, Toyota Fortuner, Mitsubishi Triton and Nissan Navara but not necessarily in this order. Vigo is still the leader but Triton, Fortuner and Navara are vying for the second position. Some months Fortuner comes second, then a big order of Fortuner comes and Triton is catching up and then Navara fans place a huge order for Nissan Navara and Navara comes second. Please note that Toyota Fortuner is spelled Fortuner and not Toyota Fortuna as some have been known to spell it.
We are currently selling 2008 Toyota Fortuner but minor change 2009 Toyota Fortuner is in the offing. Here are some sneak Images (Pics) and information on upcoming 2009 model Toyota Fortuner. 2009 Toyota Hilux Vigo is also expected next month and we will be first one to report on it and the first one to export new minor change Toyota Hilux Vigo and Toyota Fortuner.
Just as Toyota Vigo took the world with storm, Vigo-based Toyota Fortuner's popularity continues to spread to the farthest shores. It has become so popular that the unthinkable has happened and people are buying it in preference to Toyota Landcruiser Prado and Toyota Landcruiser Cygnus - a feat unthinkable in the past.
The Toyota Fortuner is a luxury sports-utility vehicle (SUV) offering great value at slightly over one million baht. It comes with seven seats, top-notch quality, high performance engine and a fine balance between on- and off-roading capability. This popular SUV is based on wildly popular Hilux Vigo and on luxury Lexus. It comes either with a 2.7-liter petrol (118 bhp @5200 rpm, 241 Nm @ 3800 rpm) or a 3-liter D4D turbo-diesel engine (120 bhp @ 3400 rpm, 343 @ 1400 rpm). Four- or five-speed automatic gearboxes are available.
The all-new Toyota SUV completes the Innovative International Multipurpose Vehicle (IMV) line-up together with the Hilux pick-up, introduced in December 2004 and the Innova Multipurpose Vehicle launched last February.
Toyota's
newest SUV is developed in line with the IMV project's global quality standards
that aim to produce vehicles that appeal to various markets around the world
transcending different regions.
It is a seamless fusion of seeming contradictions. Bold yet refined. Rugged yet stylish. Brimming with power, yet safe as home. A symbol of strength, yet a vision of beauty. Teeming with cutting-edge technology, yet interfaces effortlessly with its master. The new Toyota Fortuner is a luxury SUV unlike any other SUV.
Its uniquely powerful yet stylish look has made it such a hit that many Vigo users are banging on our doors to turn their Vigo G into a Vigo V where we add touches to the interior of the vehicle to add parts and accessories that make Fortuner V an envy of the neighborhood but also changing the front to make it look like a Fortuner. Find more about it in our Vigo page.
Fortuner comes in three models:
Although
the car is based on a pick-up its styling is pure SUV with hints at the
luxurious Lexus RX300. As mentioned earlier, it is a 7-seater just as its
recently introduced local competitor, the Isuzu MU7. These seven seats with a
wheelbase of 2750 mm, give us enough space to accommodate the tallest of
passengers.
Fortuner replaces Toyota 4Runner (Fourrunner), which is known as Toyota Hilux Condor in some markets and as SportsRider in Thailand and Indonesia.
Like all modern day SUVs, the interiors are car-like, but unlike a car, the Toyota Fortuner is definitely able to handle most kinds of terrain you can throw at them. So you get the comfort of a car with off-road capabilities of a 4x4.
Toyota has decided to go the safe way - and so this will be a ladder-on chassis SUV with all its attendant benefits. The front suspension will have independent double wishbone suspension which should make for good control.
 |
 |
 |
 |
Fortuner has turned Thailand's SUV market upside down. According to Bangkok Post, it has grabbed a 70.4% share of the market by increasing its sales by a whopping 1,204%. The table on the left shows the vehicle sales figures for March 2005. This is what Bangkok Post had to say about these results:
"The Toyota Fortuner's rear coil-spring setup and performance-oriented oil-burner gave the sport-utility segment a much needed boost with first-quarter sales of 9,388 units for an unprecedented 111.4% increase over last year during the same period.
"More than 6,600 customer
deliveries of the Fortuner SUV based on Toyota's Innovative International
Multi-Purpose Vehicle (IMV) underpinned the performance, while the 1KD-FTV
engine delivering 163hp and 363Nm of torque, has pumped new life into the once
stagnant SUV segment which sold only 4,442 units in the first quarter last year.
"Toyota literally cornered the SUV market this year as seen by its 70.4% market
share and an incredible 1,204.1% jump over last year's first quarter mark.
"This scenario is basically the same as when the previous Sport Rider caused a
major stir in SUV sales before the turn of the century."
Fortuner has caused a similar stir in the Philippines. According to the Manila Times ABS-CBN:
"We have an average of 100 reservations per dealership," boasted Toyota Motor Philippines PR officer Ariel de Jesus. "We’re already talking 1,300 units here for our Metro Manila dealers alone. Even the Innova didn’t get this kind of response," he added.
"De Jesus was referring to Toyota’s latest product in the market, the Fortuner SUV, and his enthusiasm was based on the fact that the Fortuner was formally launched only last week."
Fortuner's runaway popularity is not surprising. It is an explosive combination of Lexus stylishness and luxury with Hilux Vigo's performance and off-road prowess. Its cutting edge design and sport utility functionality has made a convert of SUV aficionados everywhere. With its overall dimensions of 4,695 millimeter (mm) by 1,840mm by 1,795mm, this SUV is not just the best vehicles in its class but also its biggest member.
Its
aerodynamic exterior design incorporates a color-keyed, chrome-accented front
grille. The Fortuner’s multi-reflector quad headlamps are not just for
aesthetics but for functionality as well, as it enhances night-driving
visibility.
Chrome side-view mirrors and door handles emphasize the Fortuner’s touch of class, while the roof rails make it ready for weekend warriors with huge load needs. Black side steps, a higher door frame height (1,105mm), a wider door opening (1,030mm), a lower entry height from ground (360mm) all add convenience in passenger entry and exit.
The Fortuner’s over fenders match well with its 16-inch alloy wheels mounted on all-terrain 265/70R16 tires. The rear spoiler with integrated LED high-mount sbest lamps is a handsome and aerodynamic safety feature. Multi-reflector rear combination lamps contribute to the Fortuner’s cohesive rear-end design.
The new Fortuner boasts of a bold exterior design, plush interior, optimum safety features and cutting-edge technology.
The Fortuner's superior packaging combines both the function of an SUV and its cutting-edge design that makes it look great anywhere. With its overall dimensions of 4,695mm by 1,840mm by 1,795mm, it is not just the biggest vehicle in its class, but the most stylish as well.
From this large exterior design comes the Fortuner's spacious interior which gives seven passengers superior comfort, ample leg room space and high quality amenities as reflected by its interior dimensions of 2,880mm (length) by 1,475mm (width) and 1,120mm (1st row to 2nd row maximum distance) and 840mm (2nd row to 3rd raw maximum distance).
Passengers of the new Fortuner will be treated to a comfortable ride with its the plush Moquette-covered seats. Second row seats are capable of 60-40 split, while third row seats are capable of 50-50 split to maximize space for cargo. The driver's seat of the Fortuner has a sporty four-spoke leather-wrapped steering wheel, a gate-type automatic transmission, and an instrument metal panel center cluster.
The Fortuner is equipped with Optitron meter gauges that are designed for better readability. Other amenities include a 2-din single CD/ MP3-capable head-unit with a six-speaker system that provides state-of-the art audio entertainment and an information display console that updates time, direction, outside temperature and other important functions.
A dual air conditioning system with automatic climate control provides good weather at all times. Accessory power outlets located at the front and rear makes the Fortuner ready for work, play, and even emergencies. The SUV has handy map lights, ample cup and bottle holders and 21 convenience pockets.
Toyota's
incomparable reputation in engineering and technology lies deep within the
potent source of the vehicle's power.Perfected by Toyota, the advanced Variable Valve Timing-intelligent (VVT-i)
technology provides superior engine power with minimal fuel wastage. That's more
than enough for a spirited highway sprint or a treacherous rough road ascent.
The Fortuner 4x2 variant is powered by a 2.7-liter four-cylinder engine that features Toyota’s variable valve timing system called the VVT-i (the "i" stands for intelligent). What VVT-i does, according to Toyota, is it automatically regulates the intake of air and fuel to achieve the optimum ratio according to requirements, thereby providing maximum power combined with maximum fuel efficiency. The entire vehicle may not qualify as tech-savvy but its engine will. It’s rated at 158 horsepower and produces 241 Nm of torque.
Meanwhile, the top-model Fortuner 4x4 packs a 3.0-liter direct-injection, common rail diesel engine called the D-4D. Also an advanced engine, the D-4D features a variable nozzle turbocharger with intercooler, and this boost of fresh air forced to the engine allows it a 161-horsepower rating and a robust 343 Nm of torque all throughout the 1,400-to-3,200-rpm range. Bolt the D-4D to an electronically controlled four-speed automatic transmission and combine it with a full-time four-wheel-drive system and the Fortuner should provide an entertaining ride. (The 4x2 gets the same transmission as the 4x4.)
The Toyota Outstanding Platform (TOP) provides rigidity and control for a more superb driving experience. Equipped with front independent Double-Wishbone Suspension with Coil Springs and Stabilizers plus a rear 4-Link Suspension with Coil Springs and Lateral Rod, the Fortuner grants optimized vehicle stability for a guaranteed comfortable ride.
Dominating the sleek and stylish exterior of the new Toyota Fortuner are well-crafted contours and fluids lines, as it boast off a grand hood scoop, quad multi-reflector headlamps and an elegant front grille design. A new creation truly defined by a mascular profile artfully created to exhibit the precision of design and prestige of the ultimate SUV.
All it takes is one glance for the Fortuner to reveal its essence of sporty elegance - an awe-inspiring stance that exudes both magnificence and grandeur.
The
interior is an excellent study in beauty and subtlety, with ivory hues that
soothe the eyes and contours on the dashboard that make perfect design sense.
The Fortuner flaunts a deeply recessed instrument gauge cluster, an elegant
ergonomic interface and sumptuous cabin with 21 compartments to provide for a
unique tactile experience of luxury and control.
Some of the Fortuner’s luxury car touches are the Toyota-standard Optitron gauges, a device that illuminates the meters whether in day- or nighttime driving, an in-dash CD/MP3 player with six speakers placed around the cabin for maximum acoustics, an information console (a digital clock, compass and thermometer rolled into one), and a dual zone air conditioner. Handy gadgets include power outlets useful for laptops, cell phones and the like, map lights and the requisite bottle and cup holders. Toyota boasts it has designed into the Fortuner’s interior no less than 21 convenience storage bins. Count them—that’s twenty-one.
Toyota strives to ensure the protection of passengers with a showcase of state-of-the-art active and passive safety features in this urban masterpiece.
The Fortuner is designed with various safety features inside and out. The Anti-lock Braking System or ABS enables the driver to steer the Fortuner to avoid collision, even during hard braking. Life-saving dual SRS Airbags for the driver and passenger reduce the chances of serious injury especially from major frontal collisions. Toyota's Global Outstanding Assessment or GOA puts a premium on passenger on protection and this enables the Fortuner to have a reinforced cabin, side impact beams, head impact protection, special crumple zones, collapsible steering column, and an anti-intrusion brake pedal.
The
Fortuner’s interior gives seven passengers comfort and ample leg room space as
reflected by its interior dimensions of 2,880mm (length) by 1,475mm (width) and
1,120mm (first row to second row maximum distance) and 840mm (second row to
third row maximum distance). Ivory hues, sleek contours on its dashboard and an
ergonomic interface gives the driver an experience of luxury and control.
Moquette-covered second row seats are capable of 60-40 split, while third row seats are capable of 50-50 split to maximize space for cargo. Its sporty four-spoke leather-wrapped steering wheel, a gate-type automatic transmission and an instrument metal panel center cluster maximize the driving pleasure.
The
Fortuner is equipped with optitron meter gauges. A two-din single CD/MP3-capable
head-unit with a six-speaker system provide state-of-the art audio entertainment
while a multi-information display console that updates time, direction, outside
temperature and other important functions bring convenience to the driver.
Dual air conditioning system with automatic climate control provides good weather at all times. Accessory power outlets located at the front and rear makes the Fortuner ready for work, play and even emergencies. Handy map lights, ample cup and bottle holders and twenty-one convenience pockets reveals practicality.
The true measure of the Fortuner’s power is found in the heart of this vehicle -- either a 3.0-liter Toyota D4D Diesel Engine or a 2.7-liter VVT-i engine. It generates the highest horse power of 120 kilowatt/3400 rpm.
The 3.0 Liter DOHC 16 valves Direct Injection Common Rail Diesel Engine, with a full-time 4X4 Drive-Train is equipped with a variable nozzle turbo-intercooler maximized with 163 PS through 343 Newton-meter of torque at 1,400 to 3,200 rpm, the highest in its class.
Meanwhile, a responsive and smoother show of power is provided by the 2.7-liter DOHC four-cylinder 16-valves Variable Valve Timing Intelligent (VVT-i) 4X2 gasoline (petrol) engine. The VVT-i engine is capable of 160 PS and a respectable 241 Newton-meter of torque at 3800 rpm that delivers great power but can accelerate quickly with minimum of noise. It generates maximum horse power of 118 kilowatt/5200 rpm.
Enhancing the Fortuner’s strength is its Toyota Outstanding Platform or TOP, coupled with a solid but pliant suspension and advanced noise vibration and harshness reduction materials to significantly reduce noise, vibration and harshness level inside the cabin.
Passengers in the backseat are expected to have a comfortable ride because the Fortuner is equipped with an independent double-wishbone with coil spring and stabilizer at the front, and a four-link suspension with coil spring and lateral rod at the rear.
The Fortuner is designed with safety features inside and out. The Anti-lock Braking System or ABS enables the driver to steer the Fortuner to avoid collision, even during hard braking. Also it has dual SRS airbags, a reinforced cabin, side impact beams, a head impact protection, special crumple zones, a collapsible steering column and an anti-intrusion brake pedal.
The following optional accessories are also available: bumper corner protector, front sunshade, hood protector, gear shift lock, scuff plate, luggage tray, muffler cutter and spare wheel lock.
The following colors are available: Super White II, Silver Metallic, Grayish Brown Metallic, Black Mica and Dark Gray Mica Metallic.
Here are some other features:-
Front and rear suspension
Front suspension is double wishbone with coil spring and stabilizer bar. Rear
suspension is 4-link coil spring for smoothness and balance on highway and off
road.
Full time 4-wheel drive
High and low gear can be shifted according to road conditions. Moreover,
Torsen-type limited slip at differential gear supports the power transferring
between front and rear wheels so the balancing and controlling are better and
more precise on the curve.
Sports utility vehicles have evolved from the 1970’s cross-country vehicles to the 1990s, where the term “SUV” became best known for a vehicle that can serve a dual purpose of urbaniness and utility. As the global leader in the SUV category with models like the Land Cruiser 100, Prado, and Sequoia, the new Fortuner carries the same soul but with its own distinct character reflecting the 21st century urban lifestyle. The Fortuner is set to lead the SUV market with the best balance of an urban image complemented by its rugged and tough features.
The new Fortuner’s superior packaging combines both the function of an SUV and its cutting-edge design that makes it look great anywhere the driver takes it. With its overall dimensions of 4,695mm by 1,840mm by 1,795mm, it is not just the biggest vehicle in its class, but the most stylish as well. Its eye-catching, aerodynamic exterior design incorporates a color-keyed, chrome-accented front grille that gleams with sophistication. The Fortuner’s multi-reflector quad headlamps are not just for aesthetics but for functionality as well, that also features enhanced night-driving visibility. Multi-reflector fog lamps beautifully integrated to its wrap-around bumper, prepare the driver for vision-hampering challenges ahead.
Chrome side-view mirrors and door handles emphasize a touch of class, while the sporty roof rails make it ready for weekend warriors who require huge load requirements. Black side steps, a high door frame height (1,105mm), a wide door opening (1,030mm), a low entry height from the ground (360mm) all add convenience in passenger entry and exit. The Fortuner’s over fenders are a perfect match to its 16-inch alloy wheels, mounted on high-profile all-terrain 265/70R16 tires that exude a rugged symmetry. The rear spoiler comes standard with integrated LED high-mount sbest lamp as an aerodynamic safety feature. Multi-reflector rear combination lamps are highly visible and effective and contribute to the cohesive rear design.
From this large exterior design comes the Fortuner’s spacious interior which gives seven passengers superior comfort, ample leg room space and high quality amenities as reflected by its interior dimensions of 2,880mm (length) by 1,475mm (width) and 1,120mm (maximum distance from first row to second row) and 840mm (maximum distance from second row to third row).
Plush moquette comfortably seats seven adult passengers. Second row seats are capable of 60-40 split, while third row seats are capable of 50-50 split to maximize space for cargo. The driver’s seat of the Fortuner has a feel of commanding pleasure that is further emphasized by its sporty four-spoke leather-wrapped steering wheel, a gate-type automatic transmission and optitron gauges with instrument metal panel center cluster.
Other special amenities found in this new SUV include a 2-DIN single CD/MP3-capable head-unit with a six-speaker system that provide audio entertainment and a multi-information display console that updates time, direction, outside temperature and other important functions. Also, dual air conditioning system with automatic climate control provides good weather at all times. Accessory power outlets located at the front and rear makes the Fortuner ready for work, play and emergencies. Handy map lights, ample cup and bottle holders, and twenty-one convenience pockets within the interior provide occupants with more than ample places for all kinds of bric-a-brac.
The Fortuner’s outstanding qualities are glaring in its exterior and interior features, but the true measure of its power is found in the heart of this vehicle – either a three-liter D4-D Diesel Engine or a 2.7-liter VVT-i engine.
The three-liter Direct Injection Common Rail Diesel Engine, with a full-time 4X4 drivetrain, is perfectly complemented with an electronically-controlled automatic transmission system. Equipped with a variable nozzle turbo-intercooler, its inherent power is thoroughly maximized with 161 hp and a whopping 253 lbs ft of torque at 1,400-3,200RPM. Toyota’s common rail technology equips the engine with a computer-controlled central fuel injector, which enables the engine to burn fuel at the highest degree of consistency, accuracy and efficiency, resulting to better fuel consumption, and a cleaner exhaust emissions.
A responsive and smoother show of power, on the other hand, is provided by the 2.7-liter, four-cylinder Variable Valve Timing with intelligence (VVT-i) 4X2 gas engine. The VVT-i engine automatically regulates the intake of air and fuel to achieve the optimum maximum ratio in response to the driver’s requirements, thus providing maximum delivery of power with zero fuel wastage, all in a powerful 158 hp and a respectable 178 lbs ft of torque.
Enhancing the Fortuner’s strength is its Toyota Outstanding Platform or TOP, coupled with a solid but pliant suspension and advanced noise vibration and harshness reduction materials to significantly reduce noise, vibration, and harshness level inside the cabin.
Passengers in the in the back seat are expected to have a comfortable ride because the Fortuner is equipped with an independent double-wishbone with coil spring and stabilizer at the front and a four-link suspension with coil spring and lateral rod at the rear. With all these combined together, the Fortuner’s suspension system reward its occupants the benefits of a solid, stable ride no matter how rough the roads get.
This automotive juggernaut not only has taken the coveted triple crown of automobile sales (biggest overall, passenger car and commercial vehicle market share) for the past three years, but has also taken 2005’s first quarter auto sales triple crown.
FORTUNER is produced in Thailand utilizing the
world-famous TPS (Toyota Production System). It is not only available for
customers in Thailand, but also will be exported to other regions such as ASEAN
and the Middle-east, etc.
Fortuner - the world is mine
Superior automotive innovation...attracts every eye with stylish beauty.
-Exterior design according to aerodynamics
Advanced, sporty design that features a cabin-forward look that creates a
flowing motion. Sloping, rear quarter pillars enhances the design concept, and
wrap around back windows emphasize strength and muscularity.
- Beautiful design with high utilization
Dual Multi Reflector Halogen front lamps - rounded fog lamps which perfectly
matches the front bumper. Multi Reflector taillights - roof rail supports for
various equipment installation - large-wheels and tires of 265/70 R 16 - a
perfect reception built-in antenna at the rear windows steps for getting in and
out of the car easily.
- Mobile living room with luxurious atmosphere...adjust area inside cabin easily
Luxurious and comfortable cabin. Genuine leather seats which provide comfort and
luxury increase comfortable on the journey - Tiltable headrests will increase
comfort at the head and neck areas.
- Easily adjustable seats provide more space and more loading.
-Sophisticated technology ...Highest comfort for interior area
Luxurious and distinctive 'Optitron' Illuminated light meter provides luxury and
outstanding vision
- one touch Power Windows with jam protection at the driver's side.
- superb audio system with MP3 and 6 speakers including 2 tweeters.
- Control switch for audio operation and Multi Information Display at steering wheel
- 12Volt connectors at 2 places inside the car at the
center console and the left side of the luggage compartment.
- Useful console box Bottle and cup holder at driver side of instrument panel
- rear side of console box
- 3rd row seats and at 4 doors
- center console box
- glasses box with map light.
- Multi Information Display easily to read data from the driver's seat which
display : digital clock - outside temperature - average fuel consumption - fuel
consumption while driving - average speed - driving time - driving distance from
remaining fuel - driving compass.
- Luxurious and comfortable with separate front & rear air conditioners easily
controlled with digital buttons, the control switch is at the bottom of control
panel which will control the operation of the front and rear air conditioners.
Rear air conditioner works simultaneously with a switch located at the side of
the 3rd row of seats.
- Easily get in and out of the car with remote controller
Keyless entry key with panic button is connected to Immobilizer system which can
anti-theft. In addition, there's a TVSS system. This system will help guard
against theft when trying to open the doors - hood - serious vibration of body
and removing/ connection of the battery terminals.
-Distinctive performance...responds to acceleration and fuel efficiency.
Diesel Common-rail, delivers great performance with VNT 3000 cc 1KD-FTV engine,
Diesel Common-rail, 2nd Generation
DOHC 16Valve VNT, Intercooler
Maximum horsepower 163 Ps (120 kw) at 3,400 rpm
Maximum torque 343 Nm at 1,400-3,200 rpm
Advance technology of Diesel Common-rail, 2nd generation engine,
The highest performance with the high pressure fuel injection - Multi injection
system: Pilot Injection 2 times with Main Injection 1 time- Direct injection
combustion- Controlled by 32 bit ECU.
Gasoline engine, with smooth response...with Variable Valve Timing- intelligent
(VVT-i)
2700 cc 2TR-FE DOHC 16 Valve VVT-i
Maximum horsepower 160 Ps (118 kw) at 5,200 rpm
Maximum torque 241 Nm at 3,800 rpm
Advance technology Variable Valve Timing- Intelligent (VVT-i) will help
increase the quicker response of engine, lower fuel consumption and lower
emission.
- ECT 4 speed Automatic transmission, smooth and soft operation
Gate Type system helps control gear shift. Smooth and soft operation. This
automatic transmission with electronic control throttle valve and acceleration
pedal responds quickly and also contributes efficiency control with flex lock-up
clutch control.
- Superior comfort...with quiet cabin and great suspension
Reduce noise to cabin by using absorption - Uni-type side panel developed by
computer analysis will increase the strength to body and reduce noise. - high
performance of passenger tires 265/70 R16 will reduce noise from road - Balance
Shaft will reduce the vibration of engine.
- Double Wishbone Front Suspension helps the balance while driving on and off
road - Coil spring will provide the smooth driving and stable driving
performance while cornering and also increase comfort for better driving.
- Four- link Rear Suspension. More comfortable while driving with coil springs
will provide smooth driving - rigid rear axle will increase the security and
durability while driving both on normal and rough roads. Suspension link
geometry is designed to optimize handling and driving stability.
4WD ...from valuable experience of TOYOTA ä "Drive on the fly" is the
transmission system which will function 4WD
continuously without pressing buttons or changing gears for turning on/off 4WD
- Torsen Center LSD will diffuse the torque between front and rear wheels.
This depends on the road conditions. In addition, it will increase the stability
of vehicle when cornering with safer steering feel.
- Performance OFF ROAD...with the perfect design of angles of the underbody.
Approach angle 30 degrees
Ramp break angle 25 degrees
Departure angle 25 degrees
- best (Toyota Outstanding Performance) Platform…tough for every road conditions.
Tough chassis - Front and rear coil-spring suspension system - Rack and Pinion
power steering gear - Front Disc brakes with large double port calipers.
- Protection on rough roads, equipped with an engine under cover and fuel tank
under protector.
-Fully equipped safety system ...both Passive and Active
Active Safety to protect against unexpected accidents. Anti-lock Braking system
(ABS) - Load Sensing Proportion Valve (LSPV) cover all loading condition - high
mount sbest lamp - front disc brakes - fog lamp.
- Passive Safety to reduce injury from accident. GOA body structure side impact
protection beam - SRS Airbag - ELR safety system at 3 points head impact
protection structure - collapsible steering column - laminated windshield glass.
| Model grade |
4x4 Diesel |
4x2 Gasoline (Petrol)
|
| Engine | ||
| Model |
1KD-FTV
|
2TR-FE |
| Type |
Direct Injection, 4-Cylinder In-Line, DOHC 16
Valve, Variable Nozzle Turbo with Intercooler .
|
VVT-i, 4Cylinder, In-Line DOHC, 16 Valve
|
| Displacement cc |
2,982
|
2,694 |
| Maximum Output Ps/rpm |
163/3,400
|
160/5,200 |
| Maximum Torque Nm/rpm |
343/1,400 - 3,200
|
241/3,800 |
| Transmission |
Gate-Type, 4-speed Automatic with ECT
|
|
| Fuel System |
Direct Injection Common Rail (D-4D)
|
EFI |
| Chassis | ||
| Suspension front |
Double Wishbone with Coil Springs and Stabilizers
|
|
| Suspension rear |
4-Link with coil Springs and Lateral Rod
|
|
| Brakes front |
Ventilated Discs
|
|
| Brakes rear |
Leading-Trailing Drum
|
|
| Steering System |
Rack and Pinion with Power Steering
|
|
| Tires/Wheels |
265/70 R16 7JJ Alloy with Center Cap
|
|
| Drivetrain |
Full Time 4x4 Shift on the Fly (High and Low)
|
4x2 RWD
|
| Dimension and Weight | ||
| Overall Length x Width x Height mm |
4,695 x 1,840 x 1,850
|
|
| Wheelbase mm |
2,750
|
|
| Tread: front/rear mm |
1,540/1,540
|
|
| Ground Clearance mm |
220
|
|
| Curb Weight kg |
1,945
|
1,735
|
| Minimum Turning Radius m |
5.7
|
|
| Fuel Tank Capacity L |
65
|
|
| Seating Capacity pax |
7
|
|
| Exterior | ||
| Headlamps |
4-Lamp Multi-Reflector Halogen
|
|
| Front Foglamps |
Multi-Reflector Halogen
|
|
| Bumper front |
Color Keyed
|
|
| Bumper rear |
Color Keyed
|
|
| Front Grille |
Color Keyed with Chrome
|
|
| Overfenders |
Color Keyed
|
|
| Side Turning Lamp Markers |
With
|
|
| Outside Rear View Mirror |
Chrome
|
|
| Door Outside Handle |
Grip Type, Chrome
|
|
| Window Sash Blackout |
With
|
|
| Side Step |
With Step Cover
|
|
| Roof Rail |
With
|
|
| Back Door Handle Garnish |
Chrome
|
|
| Rear Spoiler |
With
|
|
| Rear Window Defogger |
With
|
|
| Rear Windshield Wiper |
With
|
|
| Interior | ||
| Seats front |
Sliding, Reclining with Adjustable Headrest
(2pcs) with Driver Vertical Height Adjust
|
|
| Seats rear # 1 |
60:40 Split, Sliding, Reclining, Tumble with
Center Armrest
|
|
| Seats rear # 2 |
50:50 Split, Recline, Space-up
|
|
| Seat Material |
Full Moquette
|
|
| Steering Wheel and Column |
4-Spoke Leather with Airbag, TIlt-Adjustable
|
|
| Meter Guage |
Optitron
|
|
| Instrument Panel Center Cluster |
Metal Panel
|
|
| Map Lamp |
With
|
|
| Shift Knob/Shift Boot |
Urethane
|
|
| Console Box |
With Lid and Rear Cup-holder
|
|
| Cup Holders/Bottle Holder front |
Instrument Panel and Front Door Trim
|
|
| Cup Holders/Bottle Holder rear |
Center Console, Rear Door Trim, and Rear Deck
Side Trim
|
|
| Sunvisor |
Driver (with Ticket Holder) and Passenger (with
Mirror)
|
|
| Door Inside Handle |
Chrome
|
|
| Door Trim |
Moulded, Fabric
|
|
| Door Pockets |
Front and Rear
|
|
| Function | ||
| Power Features |
Windows, Doorlocks, Outside Rear View Mirrors
|
|
| Multi-Information Meter |
With
|
|
| Accessory Power Outlet |
Front and Rear(12V)
|
|
| Airconditioning System |
Dual, Automatic Climate Control
|
|
| Key/Light On Warning |
With(Buzzer Type)
|
|
| Antenna |
Window, Painted Type
|
|
| Vehicle Security System |
TVSS with Keyless Entry
|
|
| Safety | ||
| SRS Airbag |
Driver and Passenger
|
|
| ABS |
With
|
|
| Seatbelts front |
3-pt ELR x 2 with Adjustable Seatbelt Anchor
|
|
| Seatbelts rear # 1 |
3-pt. ELR x 2 + 2-pt. NR
|
|
| Seatbelts rear # 2 |
3-pt. ELR x 2
|
|
| Child Protection Lock |
With
|
|
| High Mount Sbest Lamp |
With
|
|
| Sidedoor Impact Beams |
With
|
|
| *Details of specifications and equipment provided in this catalogue are subject to local conditions and requirements and may, therefore, vary from models available in a given area |
Toyota Fortuner Petrol: 2.7 C 4WD A/T
| GRADE 2.7 V | |
| Drivetrain : | 4WD |
| Engine type: | 2 TR-FE |
| Transmission: | Automatic 4 Speed |
| Fuel Type: | Gasoline |
| Displacement: | 2694 |
| Model code: | TGN51R-NKPSKT |
| STANDARD EXTERIOR EQUIPMENT | |
Front grill |
|
Head Lamp Halogen Multi Reflector |
|
Side Step |
|
Side Door Mirror/Grip Handle : |
Chrome |
Roof handle |
|
Front Windshield Wiper - Intermittent |
|
Windshield Wiper Rear |
|
Spoiler with 3rd Brake Lamp |
|
Rear Lamp |
|
| STANDARD INTERIOR EQUIPMENT | |
Console box Cental (Silver Metallic) |
|
Meter Optitron |
|
Meter Odometer Digital 2trip record |
|
Screen Light Switch |
|
Indicator Lights |
|
Multi-information Display |
|
Interior Light |
|
Car Audio Tuner with Cassette tape |
|
CD Player Changer 1 CD and MP3 |
|
Speaker |
6 |
Antenna Built-in Mirror |
|
Air-conditioning |
|
Steering Wheel: |
4 Spoke Leather |
Steering Wheel and Audio Control Switch |
|
Power Window - |
Automatic with Jam Protection for Driver |
Central Lock/Key with remote/immobilizer and TDS |
|
Seat : |
Leather |
Seating : |
Front row, Second row and Rear row |
| SAFETY EQUIPMENT | |
ABS |
|
LSPV |
|
Front Fog Lamp |
|
back Sonar |
|
Rear Window Defogger Inner |
|
GOA Body |
|
Side Impact Door Beam |
|
SRD AirBag |
Both Sides (Driver & Passenger) |
Seat Belt : |
Front seat, Second seat and Rear seat |
Collapsible Steering Wheel/Collapsible Brake Pedal |
|
Automatic Fuel cut off Valve System |
GRADE 2.7 V
Drivetrain : 4WD
Engine type: 2 TR-FE
Transmission: Automatic 4 Speed
Fuel Type: Gasoline
Displacement: 2694
Model code: TGN51R-NKPSKT
Front grill
Head Lamp Halogen Multi Reflector
Side Step
Side Door Mirror/Grip Handle : Crome
Roof handle
Front Windshield Wiper - Intermittent
Windshield Wiper Rear
Spoiler with 3rd Brake Lamp
Rear Lamp
Console box Cental (Silver Metallic)
Meter Optitron
Meter Odemeter Digital 2trip record
Screen Light Switch
Indicator Lights
Multi-information Display
Interior Light
Car Audio Tuner with Cassette tape
CD Player Changer 1 CD and MP3
Speaker-6
Antenna Built-in Mirror
Air-conditioning
Steering Wheel: 4 Spoke Leather
Steering Wheel and Audio Control Switch
Power Window - Automatic with Jam Protection for Driver
Central Lock/Key with remote/immobilizer and TDS
Seat : Leather
Seating : Front row, Second row and Rear row
ABS
LSPV
Front Fog Lamp
back Sonar
Rear WIndow Defogger Inner
GOA Body
Side Impact Door Beam
SRD AirBag Both Sides (Driver & Passenger)
Seat Belt : Front seat, Second seat and Rear seat
Collapsible Steering Wheel/Collapsible a Brake Pedal
Automatic Fuel cut off Valve System
| Standard Equipment | 60:40 split fold second row/rear seat, Aerial, Air-conditioning, Airbags, dual front, Alarm, Audio - 1-CD player, Audio - AM/FM radio, Audio - cassette player, Brake, Anti-Lock (ABS), Central locking, Central locking, remote, Centre console, Clock, digital, Demister, rear window, Door handles, chrome, Driver's footrest, Driver's Seat - Manual Adjustment, Floor carpet, Fog lights, Front, Front Passenger's Seat - Manual Adjustment, Gauge, oil-pressure, Glovebox, Head rests, Front, Headlight Washer/Wipers, Headrests, Height Adjustable Front, Map lights, Front, Map lights, Rear, Mirrors, front convex/parking, Mirrors, side - electric, Power steering, Power steering (variable) engine speed sensitive, Seat Belt Pretensioners-Front Seats, Seat trim, leather, Second row/rear seat, Second Row/Rear Seat Centre Armrest, Spoiler/skirt, rear, Sunvisors w/ Vanity Mirrors, Tachometer, Third row seat, Warning lamp - door ajar, Warning lamp - low fuel, Warning lamp - seat belt on, Wash/Wipe, Rear Window, Wheels, alloy, Windows, electric, Windows, electric - front and rear |
|---|---|
| Release Date | 2004 |
| Body Style | WAGON |
| Badge | V |
| Doors | 4 |
| Seat Capacity | 7 |
| Model Code | KUN51R-NKPSYT/A2 |
| VIN | MROYZ59G### |
| Drive | 4 wheel drive |
| Transmission | 4sp Automatic |
| Gear Location | Floor |
| Steering | Rack and Pinion |
| Engine Size | 2982cc (3.0) |
| Cylinders | 4 |
| Engine Configuration | In-line |
| Cam | Double Overhead Cam |
| Valves Per Cylinder | 4 |
| Compression Ratio | 17.9:1 |
| Engine Cycle | 4 Stroke |
| Engine Type | Piston |
| Engine Location | Front |
| Engine Num | 1KD-FTV### |
| Engine Code | 1KD-FTV |
| Fuel Type | Diesel |
| Fuel Capacity | 65L |
| Fuel Delivery | Direct Injection |
| Method Of Delivery | Electronic |
| Induction | Commonrail Turbo intercooler |
| Power | 163HP |
| Torque | 343Nm @ 1400RPM-3200RPM |
| Acceleration 0-100Km/h | 17.9 secs |
| Kerb Weight | 1925kg |
| Wheelbase | 2750mm |
| Length | 4695mm |
| Width | 1840mm |
| Height | 1795mm |
| Track Front | 1540mm |
| Track Rear | 1540mm |
| Country Of Origin | THAILAND |
GRADE 3.0 V
Drivetrain : 4WD
Engine type: 1KD-FTV
Transmission: Automatic 4 Speed
Fuel Type: Diesel
Displacement: 2982
Model code: KUN51R-NKPSKT
Front grill
Head Lamp Halogen Multi Reflector
Side Step
Side Door Mirror/Grip Handle : Chrome
Roof handle
Front Windshield Wiper - Intermittent
Windshield Wiper Rear
Spoiler with 3rd Brake Lamp
Rear Lamp
Console box Central (Silver Metallic)
Meter Optitron
Meter Odometer Digital 2trip record
Screen Light Switch
Indicator Lights
Multi-information Display
Map Light
Interior Light
Car Audio Tuner with Cassette tape
CD Player Changer 1 CD and MP3
Speaker-6
Antenna Built-in Mirror
Air-conditioning : Automatic
Steering Wheel: 4 Spoke Leather
Steering Wheel and Audio Control Switch
Power Window - Automatic with Jam Protection for Driver
Central Lock/Key with remote/immobilizer and TDS
Seat : Leather
Seating : Front row, Second row and Rear row
ABS
LSPV
Front Fog Lamp
Back Sonar
Rear Window Defogger Inner
GOA Body
Side Impact Door Beam
SRS AirBag Both Sides (Driver & Passenger)
Seat Belt : Front seat, Second seat and Rear seat
Collapsible Steering Wheel/Collapsible a Brake Pedal
Automatic Fuel cut off Valve System
| GRADE | 3.0 G |
| Drivetrain : | 4WD |
| Engine type: | 1KD-FTV |
| Transmission: | Manual 5 Speed |
| Fuel Type: | Diesel |
| Displacement: | 2982 |
| Model code: | KUN51R-NKMSKT |
| STANDARD EXTERIOR EQUIPMENT | |
| Front grill | |
| Air Duct | |
| Head Lamp Halogen Multi Reflector | |
| Side Step | |
| Side Door Mirror/Grip Handle : | Chrome |
| Windshield Wiper Rear | |
| Front Windshield Wiper - Intermittent | |
| Rear Lamp | |
| STANDARD INTERIOR EQUIPMENT | |
| Console box Cental (colorkey) | |
| Meter Optitron | |
| Meter Odemeter Digital 2trip record | |
| Screen Light Switch | |
| Indicator Lights | |
| Multi-information Display clock only | |
| Interior Light | |
| Map Light | |
| Car Audio Tuner with Cassette tape | |
| CD Player Changer 6 CD and MP3 | |
| Speaker-6 | |
| Antenna Built-in Mirror | |
| Air-conditioning - Manual | |
| Steering Wheel: | 4 Spoke Urethane |
| Steering Wheel and Audio Control Switch | |
| Power Window - Automatic with Jam Protection for Driver | |
| Central Lock/Key with remote/immobilizer and TDS | |
| Seat : | Cotton |
| Seating : | Front row, Second row and Rear row |
| SAFETY EQUIPMENT | |
| ABS | |
| LSPV | |
| Front Fog Lamp | |
| Rear WIndow Defogger Inner | |
| GOA Body | |
| Side Impact Door Beam | |
| Air Bag: | Driver Side only |
| Seat Belt : | Front seat, Second seat and Rear seat |
| Collapsible Steering Wheel/Collapsible a Brake Pedal | |
| Automatic Fuel cut off Valve System |
GRADE 3.0 G
Drivetrain : 4WD
Engine type: 1KD-FTV
Transmission: Manual 5 Speed
Fuel Type: Diesel
Displacement: 2982
Model code: KUN51R-NKMSKT
Front grill
Air Duct
Head Lamp Halogen Multi Reflector
Side Step
Side Door Mirror/Grip Handle : Chrome
Windshield Wiper Rear
Front Windshield Wiper - Intermittent
Rear Lamp
Console box Central (colourkey)
Meter Optitron
Meter Odometer Digital 2trip record
Screen Light Switch
Indicator Lights
Multi-information Display clock only
Interior Light
Map Light
Car Audio Tuner with Cassette tape
CD Player Changer 6 CD and MP3
Speaker-6
Antenna Built-in Mirror
Air-conditioning - Manual
Steering Wheel: 4 Spoke Urethane
Steering Wheel and Audio Control Switch
Power Window - Automatic with Jam Protection for Driver
Central Lock/Key with remote/immobilizer and TDS
Seat : Cotton
Seating : Front row, Second row and Rear row
ABS
LSPV
Front Fog Lamp
Rear WIndow Defogger Inner
GOA Body
Side Impact Door Beam
Air Bag: Driver Side only
Seat Belt : Front seat, Second seat and Rear seat
Collapsible Steering Wheel/Collapsible a Brake Pedal
Automatic Fuel cut off Valve System
Strength, luxury and sport are distinguish external images that impress
everyone’s sight and reveal the real substance of Fortuner increased feeling of
smart design and its modern.
Here is a list of the STANDARD EXTERIOR ACCESSORIES
Front grill, Head Lamp Halogen Multi Reflector, Side Step, Side Door Mirror/Grip
Handle : Crome, Roof handle, Front Windshield Wiper - Intermittent, Windshield
Wiper Rear, Spoiler with 3rd Brake Lamp, Rear Lamp
Here are the details.
Chromium side mirror and door grip increase its beauty and style.
Crystal Lens type multi-reflector rear lamp that combines dim, brake and reverse lamp within one piece to increase visibility for safety, unique and modern look.
Chromium front grille looks luxury in your style.
Triple circle type multi-reflector headlamp that integrates head lamp and turn lamp within one piece enhanced sport style.
Rear stylish spoiler is designed to match the roof curve with the third LED type brake lamp.
The 16 inches shinning alloy wheel with 265/70 R16 sport style tires.
Roof rack enhances its smart and utility of high class SUV vehicle. Reverse distance determination sensor aids driver while moving backward or parking.
In every driving condition, you still enjoy with provided conveniences and
luxury inside Fortuner. Interior is decorated with cream-color and
silver-metallic dashboard installed all utilized equipment that you could find
only in high class SUV.
Here is the STANDARD INTERIOR ACCESSORIES
Console box Cental (Silver Metallic)
Meter Optitron
Meter Odemeter Digital 2trip record
Screen Light Switch
Indicator Lights
Multi-information Display
Interior Light
Car Audio Tuner with Cassette tape
CD Player Changer 1 CD and MP3
Speaker-6
Antenna Built-in Mirror
Air-conditioning
Steering Wheel: 4 Spoke Leather
Steering Wheel and Audio Control Switch
Power Window - Automatic with Jam Protection for Driver
Central Lock/Key with remote/immobilizer and TDS
Seat : Leather
Seating : Front row, Second row and Rear row
More details below:
Control switches are mounted on new designed leather covered steering wheel integrated with audio remote control and driving information.
The new designed shining optitron meter in sport style.
Audio system supports MP3, tape and 6-disc CD changer drives sound through 6 position high class speakers.
Driving information display informs all 8 necessary details for driving.
Sport style Gate-type shift board.
Electronic system control panel in metallic type is designed for ease of use.
Two-row automatic air-condition controlled by digital system placed on front row and wing speed switch on the 3rd row.
Power window with jam protection system at driver position.
Large compartment on front and rear doors
Cup holder for driver and front passenger
Glasses box with light.
Foldable drop-down type cup holders for rear seat.
Bottle holder for rear seat.
Gadget hooks on both right and left at rear.
Performance and safety of vehicle could not be negotiated, so Fortuner provides you the highest safety standard for both active and passive safety basically designed for driver and passenger.
ABS brake system protects locking of wheel during sudden brake or braking on slip road including Super LPVS brake distribution system that delivers confident and avoids losing balancing.
The third brake lamp (except 3.0 G model) will aid observation of following driver.
Anti-hazy at rear window for clear visibility.
Multi-reflector head lamp enhances clear visibility in every driving condition. Fog lamp increases visibility and provide more safety.
Immobilizer will inspect code of key and engine and protect ignition when codes are mismatch.
TDS, anti-theft deterrent system, will integrate safety with remote control to prevent robbery while your car is parked. Furthermore, lock system will enable within 30 seconds and warning signal is shown when door is not closely fit to its position. The alarm also present.
GOA security structure absorbs impact force and enhances the strength of passenger room against front and rear collision, so the damage might effect to driver and passengers will be minimized.
3-point ELR type safety belt in 6 seats and one seat 2-point NR type safety belt on the second row.
Dual SRS air bag will protect driver and passenger from front collision.
Collapsible steering wheel is designed to collapse when front collision occurs.
For Glossary of technical items please check http://www.sam4x4.com/glossary.html.
FYI, Per Statcounter
you are the
-th visitor to our site since the beginning of
this year.
| About Us |
Vehicles
| Accessories |
Executives |
Testimonials |
Mission
| Links | Contact us |
Toyota Hilux Vigo | Toyota Fortuner | Mitsubishi L200 Triton | Mitsubishi Pajero Sport | Nissan Navara | Toyota Fortuner | Isuzu DMax | Chevy Colorado | Ford Ranger
Sam Motors : Thailand's Best 4x4 Pickup and SUV exporter
© 2002-2017 :: Sam Automotive Group :: All rights reserved ::
thai4x4@gmail.com ::
